The published RMU sheet provides ratings but does not list application sectors.
APPLICATION / Utility
Utility Distribution Networks
Explore equipment families for secondary distribution; select ratings and protection from the actual network specification.
SCENARIO BOUNDARY
What this application covers.
Secondary-distribution equipment can be reviewed for network switching and local distribution duties; the final arrangement depends on the utility single-line diagram and fault study.
DESIGN INPUTS
- Network voltage, frequency and rated current
- Short-circuit level and protection coordination
- Indoor or outdoor installation and enclosure conditions
- Remote control, metering and utility documentation requirements
BEFORE QUOTATION
What still needs confirmation.
Confirm the exact switching arrangement, cable interfaces and protection scheme before treating a model as suitable.
DOCUMENT-EVIDENCE MAPPING
Product families to review.
These links reflect the evidence status shown on this page. They are not equipment recommendations, project references or proof of sector suitability.
Published application context

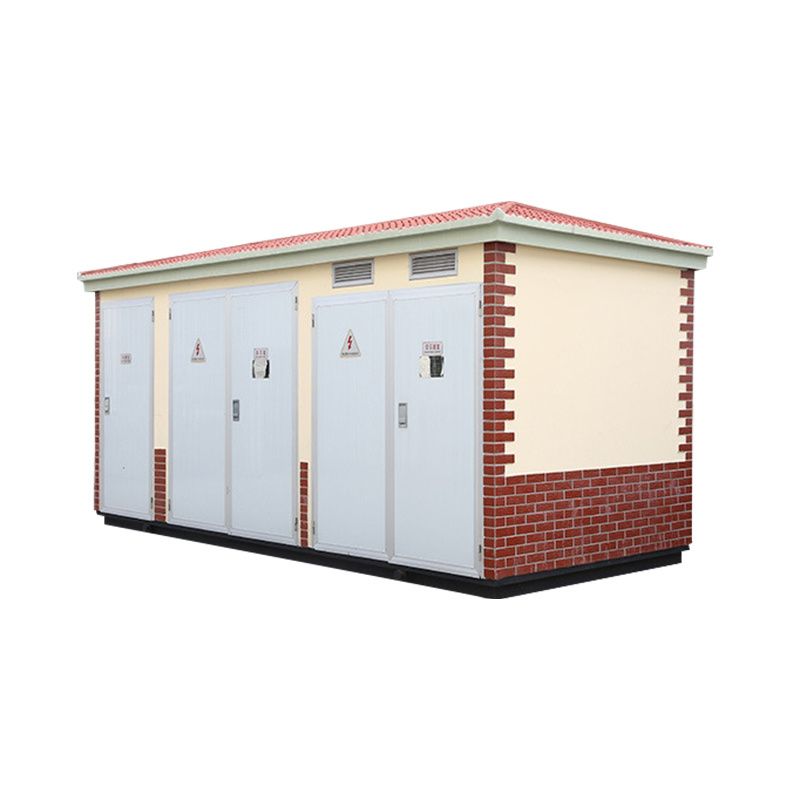

Prefabricated Substations
The published prefabricated-substation flyer names utility and municipal power distribution.
- Structure
- Three-compartment integrated (HV / transformer / LV)
- Enclosure protection
- IP44
- Mechanical impact resistance
- IK10
- Noise level
- ≤ 45 dB(A) (measured 37 dB(A))
Engineering review starting point
Ring Main Units
The category is positioned for secondary distribution; the published RMU sheet does not state an application sector.
- Rated voltage
- 12 kV
- Rated current / frequency
- 630 A / 50 Hz
- Short-circuit breaking current
- 20 kA
- Short-circuit making current
- 50 kA peak
NEXT STEP
Send the network data and the environment.
Voltage class, rated current, short-circuit level, installation environment and the standards your project is tendered against.
